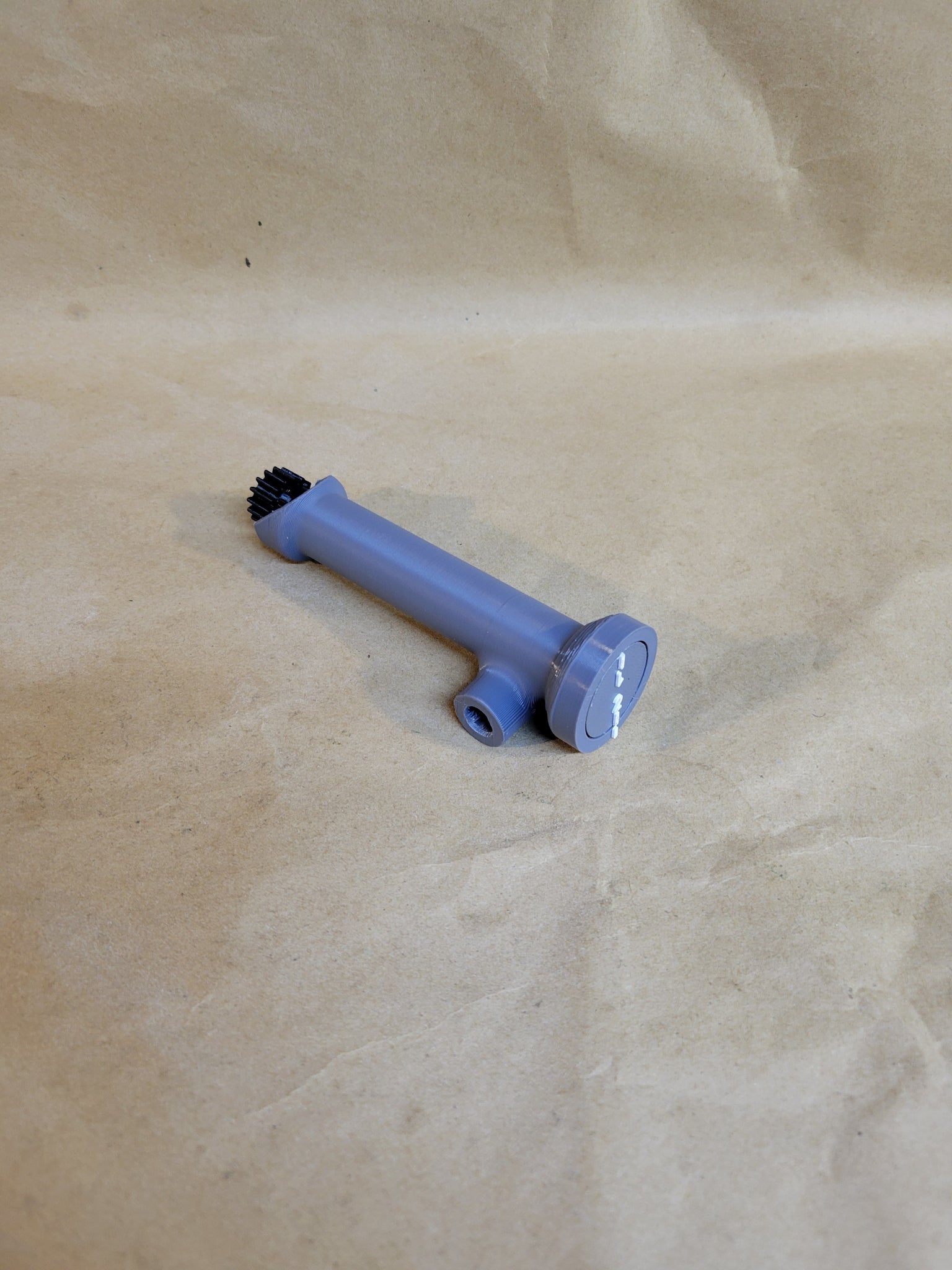

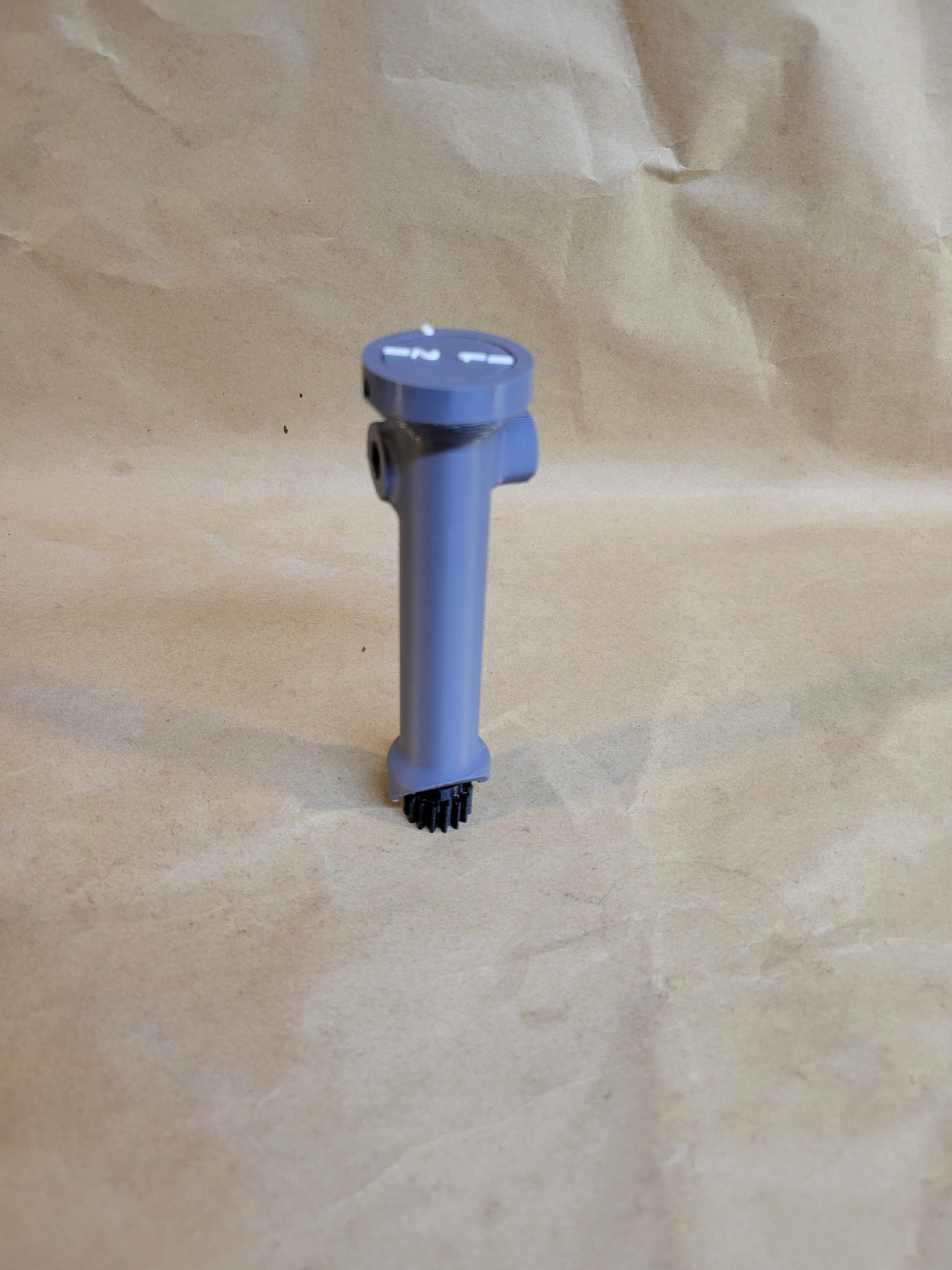

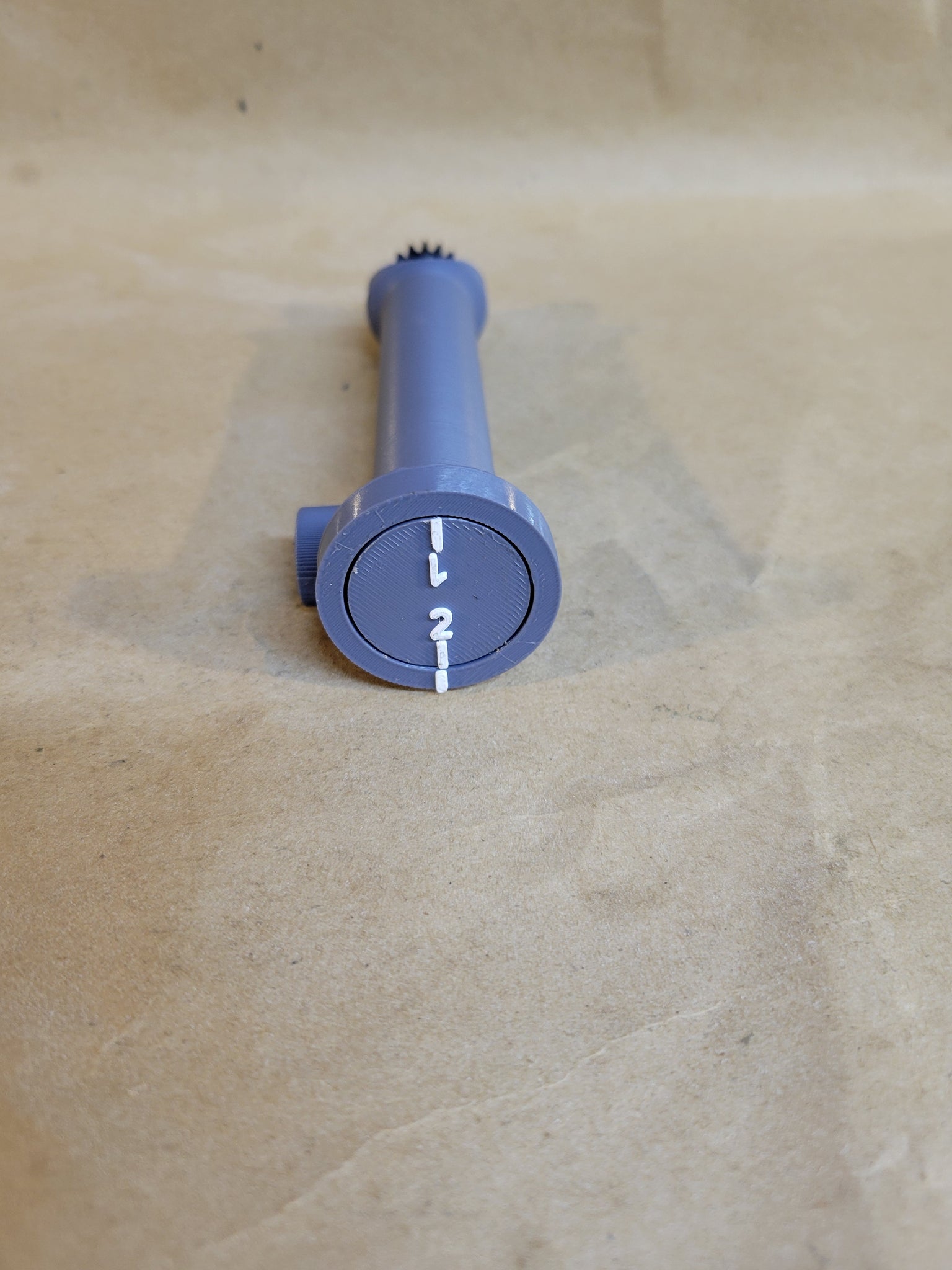

3D Printed Threading Dial (Thread Dial Indicator) for Logan 6560 14" Metal Lathe
Brand new 3D-printed plastic threading dial designed as a functional, affordable replacement for the original factory unit on Logan 14" lathes. Ideal if your original dial is missing, worn, or damaged.
Compatible Models
Fits the Logan 6560 and other 14" Logan lathes in the 6500 series that share the same lead screw and apron mounting, including:
- 6560 / 6560-H
- 6561 / 6561-H
- 6565
- 6510 / 6510-H
- 6515
- 6520 / 6520-H
- 6525
- Related Powermatic-badged 14" Logan models with the 1-1/8" × 8 TPI lead screw
Lead Screw Specs
Designed for the standard 1-1/8" diameter, 8 TPI lead screw used on these 14" machines.
Construction
- 3D printed in durable plastic (tougher than many expect for this application)
- Functional replacement for the original LP-1825 (old part 6195) Threading Dial Assembly used on 14" Logan lathes
- Smooth operation when properly fitted to the apron
Notes
- This is a 3D-printed plastic unit. It is intended as a practical, low-cost replacement rather than a factory original metal assembly.
- Minor fitting (reaming holes, adjusting engagement, or adding a simple metal shaft/bushing if desired) may be needed depending on your specific machine and print tolerances.
- Not an official Logan part.
Perfect for owners restoring or keeping a classic Logan 14" lathe productive without the high cost of original or NOS parts.
